PL-connector PL7 for Ultraflex 7 This high-quality PL-259 connector is suitable for the coax cable types H 2007, H 2007 FRNC, HIGHFLEXX 7, Aircell 7 and of course Ultraflex 7. It is equipped as standard with a ground connection sleeve. Type: UHF connector specialDesign: ConnectorConnection: SolderingCable inlet Ø7.3 mm We use these connectors for the prefabricated Ultraflex 7 coax cables. The assembly instructions can be downloaded here

The EVO series connectors from Messi&Paoloni are perfect for 7,3mm diameter coaxial cables such as Ultraflex 7, Ultraflex 7PE or the new POTA-FLEX 7. The installation of these connectors is straightforward and is supported by helpful instructions on the packaging and clear videos. Thanks to their clever design with double sealing, the connectors offer excellent protection against water, moisture and condensation. Superior quality Made in Italy. Why choose this connector? Genuine Messi & Paoloni enhanced solder connector UHF Male (PL259) 2-Pack Compression design with double seal to ensure better protection against infiltration of water, humidity and condensation Easy installation and welding instructions included in the package (no braid soldering needed) Dramatic suppression of the background noise, improvement of screening attenuation and insertion losses The UHF Evolution can be used up to 6000 MHz, a well made PL259 is barely acceptable up to 2000 MHz Model MP-CO.UHF.7M-S-EVO Product dimensions: 0.82 x 1.81 in. (2.1cm x 4.6cm) Wrench size: 0.63 in (16mm) For ULTRAFLEX 7 /.287'' cable Note: The new designed pin prevents excess of tin and the consequent heating, which damages the dielectric causing an uncontrollable alteration of the electrical properties of your cable.

The problem solver for 7mm Coax cables Difficult position of the PL /UHF socket on the device which can only be solved with an adapter, but then this adapter is too long? Why not mount a right angle connector on the cable? This high-quality PL / UHF Right Angle 90° RF Connector for 7mm is suitable for coaxial cable types: Ultraflex 7, Ultraflex 7 Crystal, Highflex 7 or Aircell 7and Hyperflex 5. It comes with one grounding connection sleeve. Quality you feel and hear You will immediately notice the high weight. This is because this adapter is made of nickel-plated brass in industrial quality. The PTFE dielectric ensures lowest insertion loss and a quiet frequency response. Type: PL/UHF angle connector Version: 90 degree angle connector Material: Housing: nickel-plated brass. Dielectric: PTFE Connection: solder version Cable inlet Ø7,8 mm We can fabricate these connectors for the prefabricated Ultraflex 7, Ultraflex 7 Crystal or Highflexx 7 coaxial cables.

N-connector for Ultraflex 7 This high-quality N connector is suitable for the coax cable types H 2007, H 2007 FRNC, HIGHFLEXX 7, Aircell 7 and of course Ultraflex 7. It is equipped as standard with a ground connection sleeve. Type: UHF connector special Design: Connector Connection: Soldering Cable inlet Ø7.3 mm We use these connectors for the prefabricated Ultraflex 7 coax cables.

Messi & Paoloni N-connector for 7mm coaxial cable This high-quality N-connector from Messi & Paoloni is suitable for coaxial cable types: Ultraflex 7, PotaFlex 7, H 2007, HIGHFLEXX 7, Aircell 7 and similar. The solder N connector comes with a sealing ring, PTFE dielectric and gold-plated center pin. The two PTFE washers supplied make it easy to install the connector. The PTFE washers and a ring-shaped thickening on the center contact prevent the cable from being pulled out of its fixed position under mechanical stress.Compression design with double seal that ensures better protection against infiltration of water, humidity and condensation.Easy installation and welding instructions included in the package (no braid soldering needed).Dramatic suppression of the background noise, improvement of screening attenuation and insertion losses.The surfaces are treated with a special alloy called Smart3-Alloy®: it is corrosion-resistant and hypoallergenic.The new designed pin prevents excess of tin and the consequent heating, which damages the dielectric causing an uncontrollable alteration of the electrical properties of your cable (differently from standard PL259 which is exposed to strong thermical stress). Product dimensions: 2,1cm x 4,0cm Wrench size: 16mm (0,63 in) *Connectors are sold individually, image is for illustrative purpose. Code: CO.N.7M-S

Der Problemlöser für 7mm Kabel (neue Ausführung) Schwierige Position der Buchse am Gerät, die man nur mit einem Adapter lösen kann, dieser dann aber zu lang wird? Warum nicht gleich einen Winkelstecker auf das Kabel montieren? Dieser hochwertige N-Winkelstecker ist für die 7mm Koaxkabeltypen wie Ultraflex 7, Ultraflex 7 PE, Highflex 7, Aircell 7 etc. geeignet. Er wird standardmäßig mit einer Masseverbindungshülse ausgeliefert.  Herstellernummer: UG 594 - 7 TA

SMA 7 special connectorHigh-quality SMA HF connector for soldering is for 7mm coaxial cables such as H 2007, HIGHFLEXX 7, Aircell 7, Ultraflex 7, LMR 300 and the like. suitable. Of course, the connector has a PTFE dielectric, a gold-plated center pin and is diamagnetic. It is equipped with a ground connection sleeve as standard. Type: SMA 7 connector specialVersion: plugConnection: solder versionCable inlet Ø7.3 mmWe use these connectors for the assembled Ultraflex 7 coaxial cables.

BNC-connector (plug) for 7 mm coax cables This BNC connector is suitable for soldering to Ultraflex 7, HIGHFLEXX 7, Aircell 7 cable. It has a nikel-plated plug housing, PTFE dielectric and a gold-plated center contact. Also included is a piece of scraping tubing.

TNC-Stecker Spezial 7mm Dieser hochwertige TNC-Stecker zum Löten hat ein vernickeltes Steckergehäuse, PTFE-Dielektrikum und vergoldete Mittelkontakte. Ein Silikon-O-Ring verhindert das Eindringen von Wasser über das Gewinde. Geeignet für: H 2007, HIGHFLEXX 7, Aircell 7, Ultraflex 7, LMR 300 u.ä.

UHF PL-259 connector twist 7mm UHF PL 259 plug for 7 mm coaxial cables such as RF-287 UF, Highflexx 7, Aircell 7. H 2007, Ultraflex 7, LMR 300 and similar. with PTFE insulation and gold-plated center contact. Assembly: The plug is assembled according to the well-known "twist-on principle" by unscrewing and soldering the center contact.

Our 50 Ohm soldering BNC socket with sealing ring, PTFE dielectric, gold-plated center pin. Available for cables with 7mm like Ultraflex 7, Highflexx 7, Aircell 7 etc. Our BNC cable socket is suitable for all cables of the 7mm dimension. This BNC socket is provided with 1 ground connection sleeves and 1 center pins. The center contacts are diamagnetic.

Solder ''PL / UHF'' female connector for 7mm coaxial cables This high-quality PL-259 socket is suitable for the coaxial cable types: Aircell 7, Ultraflex 7, HIGHFLEXX 7 etc. It is delivered with a ground connection sleeve as standard. Type: UHF connector special Version: socketConnection: solder versionCable inlet Ø7.4 mm

N socket solder 7mm Our 50 Ohm solder N socket with sealing ring, PTFE dielectric, gold-plated center pin. Available for cables with 7mm (Ultraflex 7, Highflexx 7, Aircell 7, H2007).Usable for:Ultraflex 7, Highflexx 7, Aircell 7, H2007

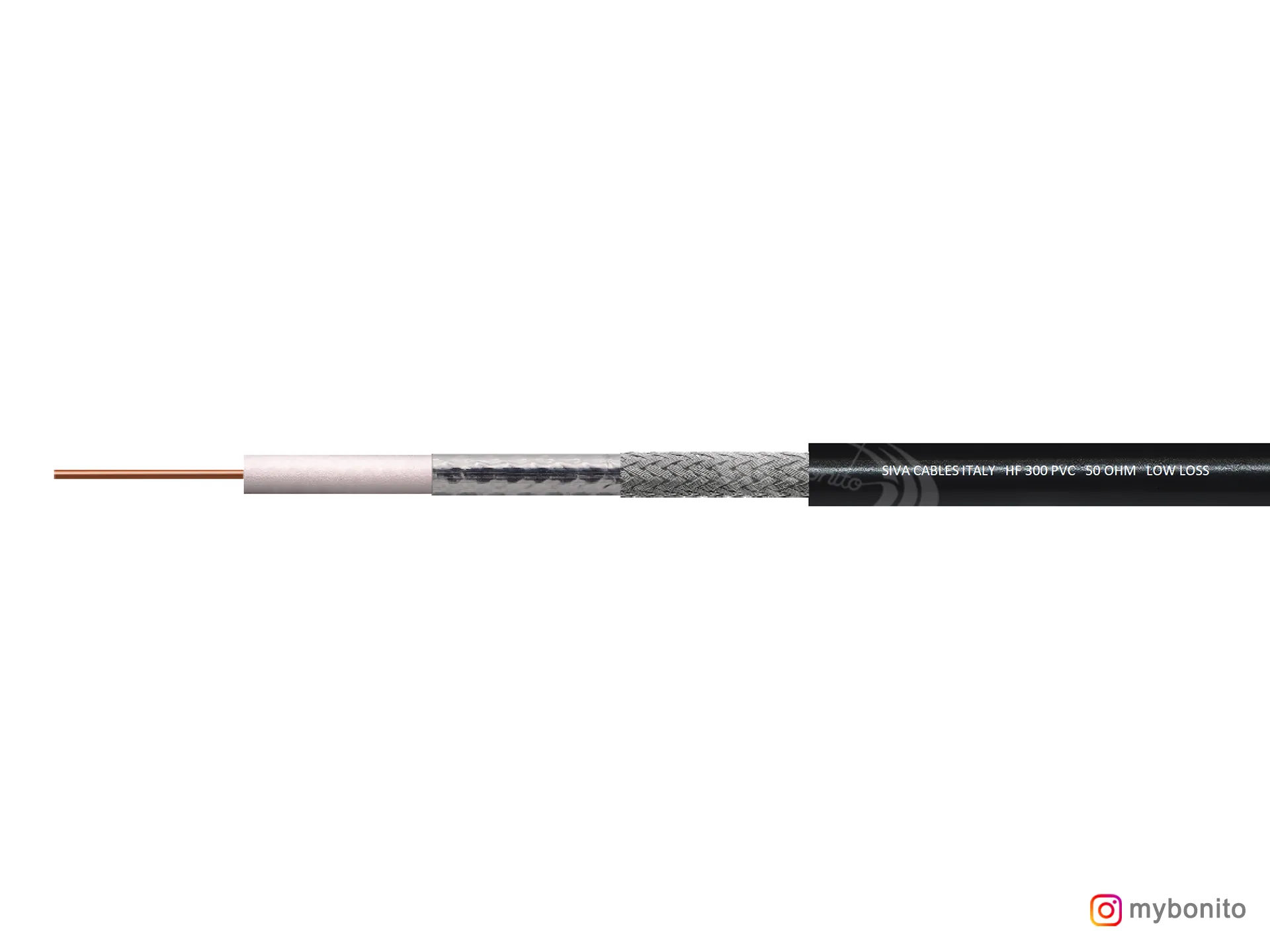

The HF 300 PVC is a professional 50 Ohm coaxial cable manufactured by the renowned Italian cable specialist Siva Cavi. With an outer diameter of 7.6 mm, it belongs to the class of compact yet powerful low-loss cables, designed for amateur radio, CB, VHF/UHF, repeater stations, antenna systems and measurement technology. Thanks to its innovative skin-foam-skin dielectric combined with a double shielding system (bonded AL-PET-AL foil + 82% tinned copper braid), the HF 300 PVC provides exceptional shielding effectiveness of more than 100 dB and ensures low attenuation per 100 meters. This makes it a reliable solution both for short patch cables and long transmission lines. Technical Specifications Manufacturer: Siva Cavi (Italy) Impedance: 50 Ohm Outer diameter: 7.6 mm Inner conductor: solid copper, Ø 1.78 mm Dielectric: Skin-Foam-Skin PE, Ø 4.85 mm Shielding: AL-PET-AL bonded foil + 82% tinned copper braid Shielding effectiveness: >100 dB (100–900 MHz) Outer jacket: durable black PVC, UV resistant Attenuation @ 100 MHz: ~3.0 dB / 100 m Attenuation @ 1000 MHz: ~20.0 dB / 100 m Operating temperature: –30 °C to +70 °C Key Benefits Premium quality by Siva Cavi – Made in Italy Compact 7.6 mm diameter – flexible and easy to install Very high shielding for interference-free signal transmission Low attenuation even at higher frequencies Universal use for radio, antenna, SAT and measurement applicationsInformationen gemäß Art. 19 GPSR SI.VA SRL - Via Vittorio Veneto, 63 - 24040 Bonate Sotto (Bergamo) Italy Tel. 035 991085/86 - siva@sivacavi.it - https://sivacavi.it/ Verantwortliche Person: SI.VA SRL - Via Vittorio Veneto, 63 - 24040 Bonate Sotto (Bergamo) Italy Tel. 035 991085/86 - siva@sivacavi.it - https://sivacavi.it/
