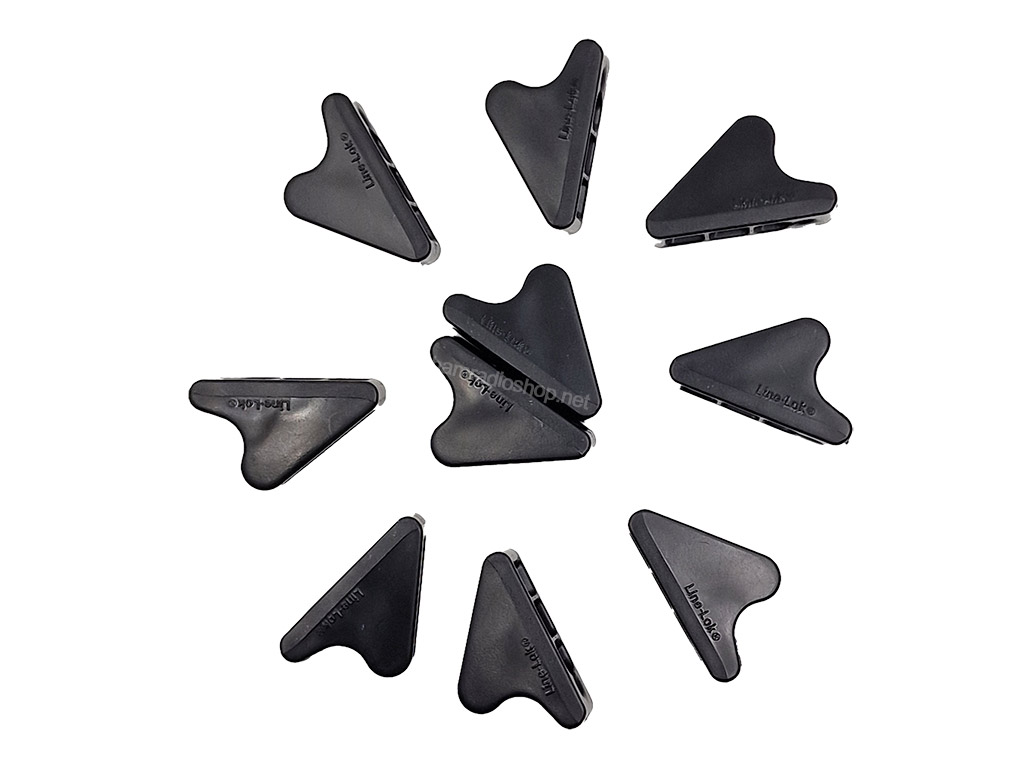

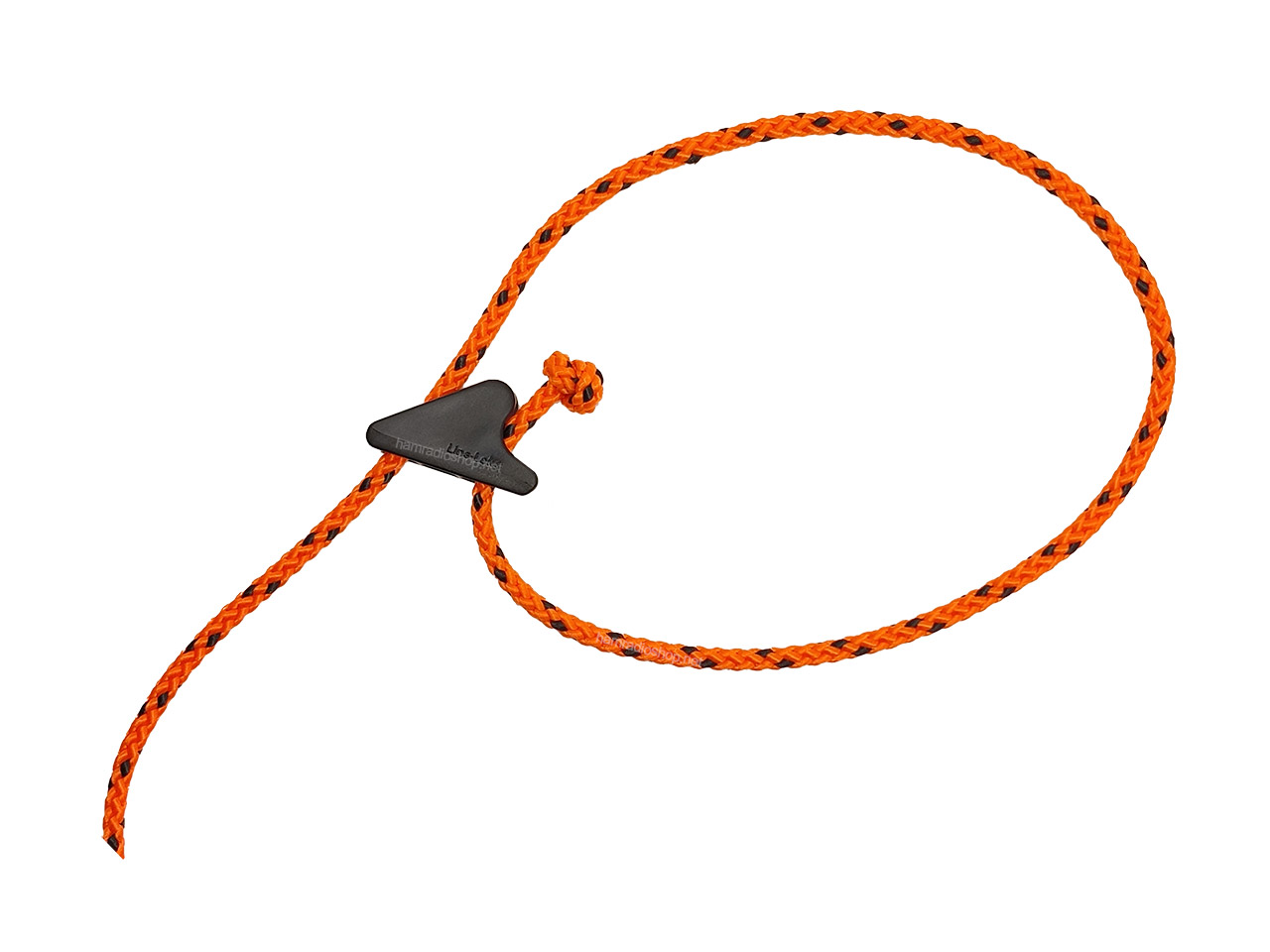

Rope clamp

Mini Endfed Antenna Kit for 10-15-20-40-80m, max 100 Watts PEP and 1:49 Transformer The Mini Endfed is a small endfed antenna solution for mobile use, travel, QRP, SOTA (Summit on the Air) or DX expeditions etc. The IP65 protected polar carbonate housing with a size of only 64x58x35 mm, can be easily stored in your pocket or backpack. The weight is about 250-500 grams, depending on the length of the spotlight. The kit has both a connector for the ANTenna and GND for a counter poise capacitance. We have also integrated the M4 ring. This makes it very easy to attach the Mini Endfed with a carabiner and use the thimble as a strain relief. All screws, nuts and the ring are made of stainless steel. If you attach the antenna to the top of a telescopic mast and slide out the mast segments, you are on the air within minutes! To attach the body of the 1:49 Transformer to a mast, you can use the same bracket as used by our active antennas. This End Fed Multiband Antenna comes with the antenna wire of your choice: Standard Antenna wire: This antenna litz wire is made of 1.0 mm2 fine stranded copper conductor with a black PVC insulation. The total diameter is about 2 mm. Ideal for experiments or vacation antennas. Since the core is only copper, this stranded wire will always elongate a bit over time, making it thinner. The tensile strength of this antenna strand is limited. Copper/Kevlar antenna litz wire This antenna litz wire is manufactured specifically for antennas. The litz consists of a Kevlar core with approx. 1.1 mm2 tinned and fine stranded copper conductors. 1x 0.4 mm Kevlar and 24x 0.25 mm copper. The jacket is made of black UV-resistant PE. The total diameter is approx. 2.5 mm. The tensile strength is approx. 50 kg. You will receive a strong, flexible and relatively light antenna litz wire. These complete Mini End Fed Multiband kits are designed for 100 Watt PEP Phone and are available in these configurations: 10-20-40 meters approximately 20 meters in length, without extension coil.10-20-40 meters, approx. 12 meters length, with 34uH extension coil10-15-20-40-80 meters, approximately 21 meters in length with 110uH extension coil. This kit contains: 23 meters of antenna wire19 mm PVC pipe with approx: 110uh coil1x stainless steel cable clamp1x end insulator1x cable lug 5mm1x heat shrink tubing 1:49 Mini impedance transformer:IP65 housing 64x58x35mm polycarbonateFerrite toroid Amidon FT140-43Winding wire 1,00 mm100 pF capacitor 1kV1x BNC flange socket2x M2,5 screws 8/10mm2x M2,5 nut2x M2,5 washer1x cable lug 3mm3x M5 cable lug2x stainless steel M5 screw 20mm2x stainless steel M5 wing nut2x stainless steel M5 collar nut2x stainless steel M5 lock washer2x stainless steel M5 screw 20mm2x stainless steel M5 wing nut2x stainless steel M5 collar nut2x stainless steel M5 tooth lock washer1x ring M41x tooth lock washer M41x nut M41x cable thimble You can find the building instructions here: TO THE CONSTRUCTION INSTRUCTION ** The construction manual is just getting its fine tuning

Hamrope PES 4 Our best selling universal guy line for the radio amateur. For portable and stationary use. The quality polyester has excellent UV resistance and is suitable for long-term use. The elasticity of this braided rope has a shock absorbing effect and is desirable and often necessary for the use of radio amateurs. The attractive design allows the product to fit well into a natural environment, yet be perceived sufficiently. Hamrope PES 4 Polyester, 4mm diameter tensile strength approx. 260 daN(~Kg) Colour: olive green with red marker Length: 50 meter

Mini Endfed antenna kit, max 100 watts for 10-15-20-40 meters approx. 20 meters long, without extension coil The Mini Endfed is a small End Fed antenna solution for portable use, when travelling, POTA, QRP, SOTA (Summit on the Air) or DX expeditions etc. The IP65 protected housing made of polycarbonate with a size of only 64x58x35 mm can be easily stowed in a pocket or backpack, but is also robust enough for stationary mounting. The weight is around 400-500 grams, depending on the length of the antenna. If you attach the antenna to the top of a telescopic mast and slide out the mast segments, you can be on air within a few minutes! To attach the housing of the 1:49 transformer to a mast, the same bracket can be used as for our active antennas. This Mini Endfed kit is supplied with an antenna wire of your choice:Standard antenna wire: This antenna wire consists of 1.0 mm2 fine stranded copper conductor with black PVC insulation. The total diameter is approx. 2 mm. Ideal for experiments or vacation antennas. As the core is only made of copper, this stranded wire will become slightly longer and therefore thinner over time. The tensile strength of this stranded antenna wire is limited. Copper/Kevlar stranded antenna wire This stranded antenna wire is specially manufactured for antennas. The stranded wire consists of a Kevlar core with approx. 1.1 mm2 tinned and fine-stranded copper conductors. 1x 0.4 mm Kevlar and 24x 0.25 mm copper. The sheathing is made of black UV-resistant PE. The total diameter is approx. 2.5 mm. The tensile strength is approx. 50 kg. You receive a strong, flexible and relatively light antenna strand. These complete Mini End Fed Multiband kits are designed for 100 Watt PEP Phone and are available in these versions: 10-15-20-40 meters approx. 20 meters long, without extension coil 10-20-40 meters, approx. 12 meters long, with 34uH extension coil 10-15-20-40-80 meters, approx. 21 meters long with 110uH extension coilThe kit contains the following components: approx. 20.45 meters of antenna wire 1x stainless steel cable clamp 1x end insulator 1x cable lug 5mm 1:49 Mini Impedance transformer: IP65 housing 64x58x35mm polycarbonate Toroidal core FT140-43 Enameled copper wire GR2 quality 1.00 mm 100 pF capacitor 2kV 1x BNC flange socket 2x M2.5 screws 8/10mm 2x M2.5 nut 2x M2,5 washer 1x cable lug 3mm 3x M5 cable lug 2x stainless steel M5 screw 20mm 2x stainless steel M5 wing nut 2x stainless steel M5 collar nut 2x stainless steel M5 toothed washer 2x stainless steel M5 screw 20mm 2x stainless steel M5 wing nut 2x stainless steel M5 collar nut 2x stainless steel M5 toothed washer 1x ring M4 1x toothed washer M4 1x nut M4 1x cable thimble

Hamrope PES 4 Our best selling universal guy line for the radio amateur. For portable and stationary use. The quality polyester has excellent UV resistance and is suitable for long-term use. The elasticity of this braided rope has a shock absorbing effect and is desirable and often necessary for the use of radio amateurs. The attractive design allows the product to fit well into a natural environment, yet be perceived sufficiently. Hamrope PES 4 Polyester, 4mm diameter tensile strength approx. 260 daN(~Kg) Colour: olive green with red marker Length: 50 meter

Stainless steel (A4) Cable thimble suitable for antenna wire with a diameter of 2mm
