End Fed Multiband Antenne DIY-Bausatz für 10-15-20-40-80m 300Watt

End Fed Multiband Antenne DIY-Bausatz 1:49 für 10-15-20-40-80m 100Watt

€59.00*

% €64.50* (8.53% saved)

Content: 1 Stück

Available, delivery time: 2-5 days

Antenna wire

Standard litz wire

Cooper /Kevlar Litz wire

Product number: 0650

Product information "End Fed Multiband Antenne DIY-Bausatz für 10-15-20-40-80m 300Watt"

End Fed DIY-Bausatz für 10-15-20-40-80m 300Watt Multiband Antenne 1:49

Neuer erweiteter Bausatz!

In diesem Bausatz sind alle nötigen Bauteile zum Bau einer EndFed 1:49 Multiband Antenne für die Bänder 10-15-20-40-80 Meter bis 300 Watt PEP Phone enthalten. Wir haben den Bausatz um einen Anschluss für das Gegengewicht und um den nützlichen Edelstahlring etc. erweitert.

Dieser End Fed Bausatz wird mit der Antennenlitze Ihrer Wahl geliefert:

Standard Antennenlitze:
Diese Antennenlitze besteht aus 1,0 mm2 feindrähtiger Kupferleiter mit einer schwarzen PVC Isolierung. Der Gesamtdurchmesser beträgt etwa 2 mm. Ideal für Experimente oder Urlaubsantennen. Da der Kern nur aus Kupfer besteht, wird sich diese Litze mit der Zeit immer etwas längen und somit dünner werden. Die Zugfestigkeit dieser Antennenlitze ist begrenzt.

Kupfer/Kevlar-Antennenlitze
Diese Antennenlitze wird speziell für Antennen hergestellt. Die Litze besteht aus einem Kevlarkern mit ca. 1,1 mm2 verzinntem und feindrähtigen Kupferleitern. 1x 0,4 mm Kevlar und 24x 0,25 mm Kupfer. Die Ummantelung besteht aus schwarzem UV-beständigem PE. Der Gesamtdurchmesser beträgt ca. 2,5 mm. Die Zugfestigkeit ist ca. 50 kg. Sie erhalten eine starke, flexible und relativ leichte Antennenlitze.

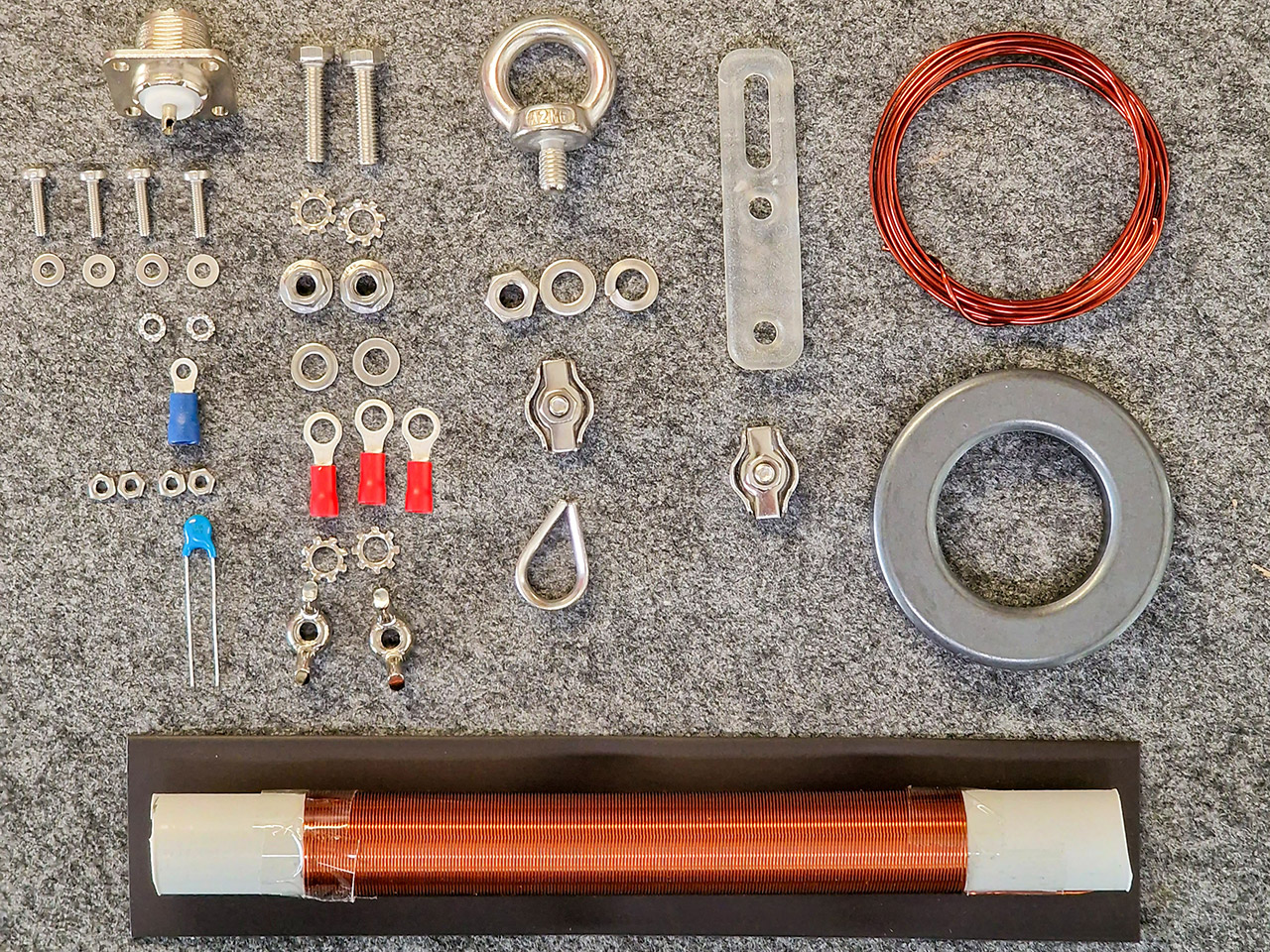

Der Bausatz enthält die folgenden Bauteile:

1x Ringkern-FT-240-43
1x Kupferlackdraht GR2 für die Wicklung des Ringkerns (1mm) ca. 1,50 Meter
1x Polycarbonat Gehäuse mit Klarsichtdeckel 100x100x60 mm (IP67)
1x Mini-Isolator 65 * 15mm transparent
2x Simplex Klemmen bis 2 mm Draht (Drahtseilklemme)
1x Kausche
ca. 23,5 Meter Antennenlitze 1mm² schwarz
1x Kondensator 100pF 2kV DC
1x PL259 Einbaubuchse
1x Verlängerungsspule 110uH fertig gewickelt und gemessen
1x Schrumpfschlauch schwarz 25.4-12.7mm
1x Verschiedene Schrauben, Unterlegscheiben und Muttern aus Edelstahl
1x Edelstahlring
3x Fast-On Ringkontakt

Typ: Multiband
Länge: ca. 23 Meter
Anschluss: PL
Max. Leistung: 300Watt PEP Phone
Gewicht: ca 600g
Balun 1:49

TIPP

Ich kann nur jedem empfehlen, die Montageplatte für den Ringkern gleich mitzubestellen. Damit ist der Ringkern befestigt und hängt nicht an den Drähten, lose im Gehäuse herum. Gerade bei Wind ein großer Voteil.

Neue Bauanleitung 7/2023

https://www.bonito.net/hamradio/bauanleitung-end-fed-bausatz/

Tolles DIY Video von OM Michael DL2YMR von der 100Watt Version
