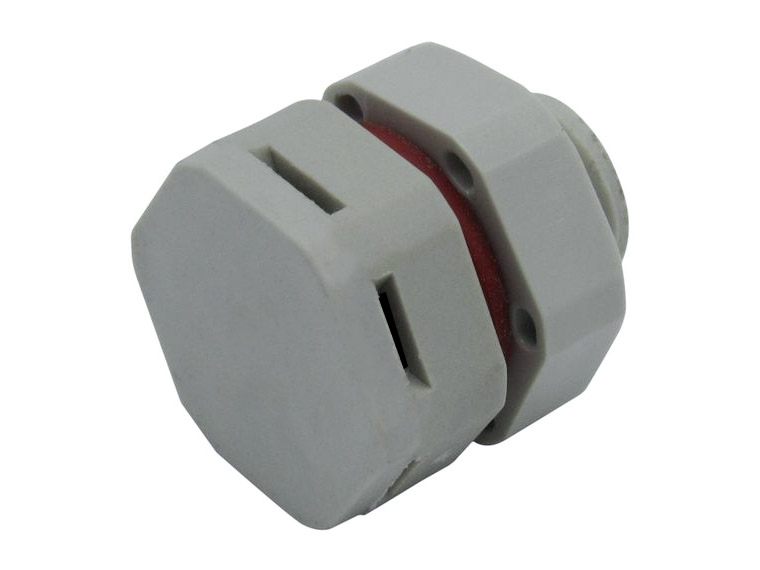

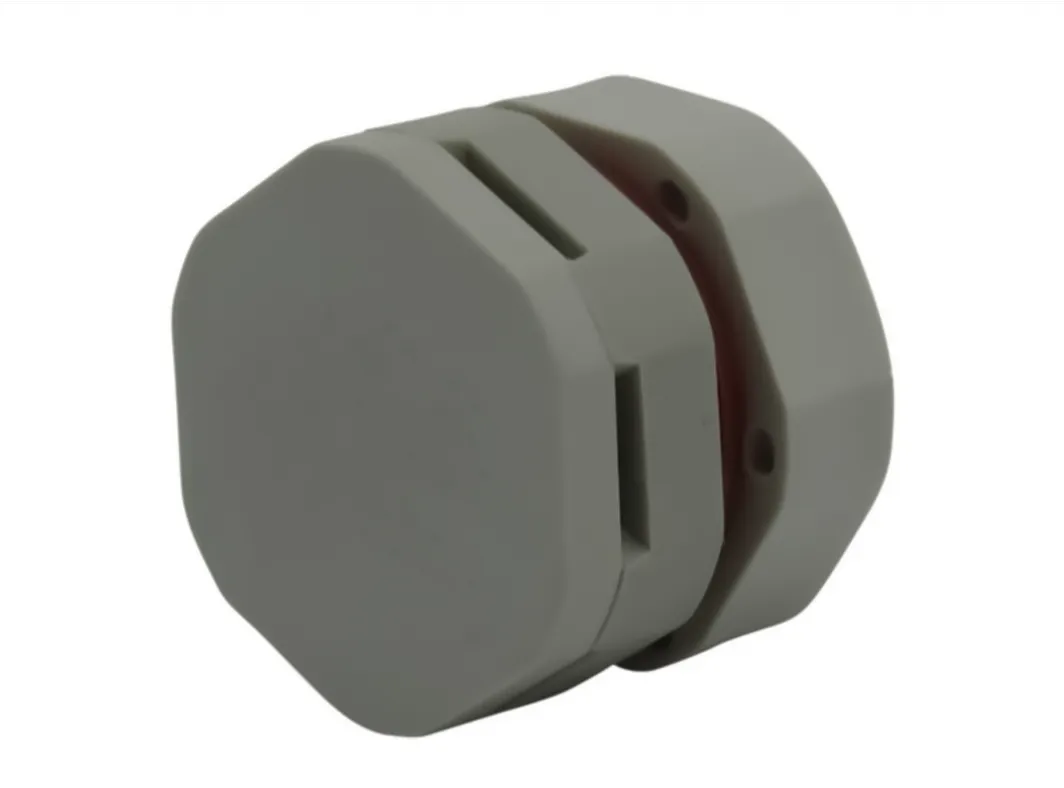

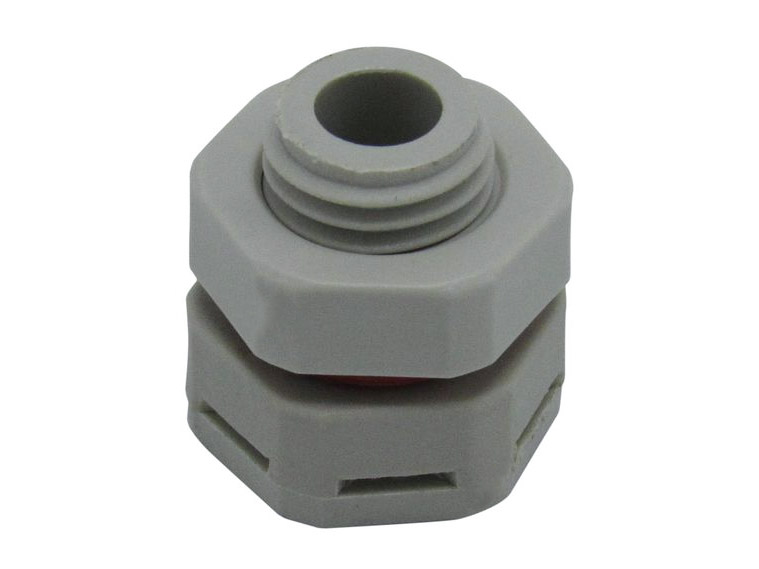

Pressure compensating valve for End Fed kits

End Fed multiband antenna DIY kit for 10-15-20-40-80m 100Watt PEP SSBNew extended kit! This kit contains all the necessary components to build an EndFed 1:49 multiband antenna for the bands 10-15-20-40-80 meters up to 100 Watt PEP Phone. We have added a connection for the counterweight and the useful stainless steel ring etc. to the kit. This End Fed kit is supplied with the antenna wire of your choice: Standard antenna wire: This antenna wire consists of 1.0 mm2 fine stranded copper conductor with black PVC insulation. The total diameter is approx. 2 mm. Ideal for experiments or vacation antennas. As the core is only made of copper, this stranded wire will become slightly longer and therefore thinner over time. The tensile strength of this stranded antenna wire is limited. Copper/Kevlar stranded antenna wire This stranded antenna wire is specially manufactured for antennas. The stranded wire consists of a Kevlar core with approx. 1.1 mm2 tinned and fine-stranded copper conductors. 1x 0.4 mm Kevlar and 24x 0.25 mm copper. The sheathing is made of black UV-resistant PE. The total diameter is approx. 2.5 mm. The tensile strength is approx. 50 kg. You receive a strong, flexible and relatively light antenna strand. The kit contains the following components: 1x toroidal core FT-140-431x enameled copper wire GR2 for winding the toroidal core (1mm) approx. 1.00 meter1x polycarbonate housing with transparent cover 100x100x60 mm (IP67)1x mini insulator 65 * 15mm2x simplex terminals up to 2 mm wire (wire rope terminal) 1x thimble approx. 23.5 meter antenna wire 1mm² black 1x capacitor 100pF 2kV DC 1x PL259 panel jack 1x extension coil 110uH ready wound and measured 1x shrink tube black 25.4-12.7mm 1x various screws, washers and nuts made of stainless steel 1x stainless steel ring 3x Fast-On ring contactType: MultibandLength: approx. 23 meters Connection: PL Max. Power: 100Watt PEP Phone Weight: approx. 500g Balun 1:49 Informationen gemäß Art. 19 GPSR Adresse des Herstellers:  Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.net Adresse der verantwortlichen Person: Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.net

End Fed multiband antenna DIY kit for 10-20-40m 100Watt PEP SSBNew extended kit! This kit contains all the necessary components to build an EndFed 1:49 multiband antenna for the bands 10-20-40meters up to 100 Watt PEP Phone. We have added a connection for the counterweight and the useful stainless steel ring etc. to the kit. This End Fed kit is supplied with the antenna wire of your choice: Standard antenna wire: This antenna wire consists of 1.0 mm2 fine stranded copper conductor with black PVC insulation. The total diameter is approx. 2 mm. Ideal for experiments or vacation antennas. As the core is only made of copper, this stranded wire will become slightly longer and therefore thinner over time. The tensile strength of this stranded antenna wire is limited. Copper/Kevlar stranded antenna wire This stranded antenna wire is specially manufactured for antennas. The stranded wire consists of a Kevlar core with approx. 1.1 mm2 tinned and fine-stranded copper conductors. 1x 0.4 mm Kevlar and 24x 0.25 mm copper. The sheathing is made of black UV-resistant PE. The total diameter is approx. 2.5 mm. The tensile strength is approx. 50 kg. You receive a strong, flexible and relatively light antenna strand. The kit contains the following components: 1x toroidal core FT-140-431x enameled copper wire GR2 for winding the toroidal core (1mm) approx. 1.0 meters1x polycarbonate housing with transparent cover 100x100x60 mm (IP67)1x mini insulator 65 * 15mm2x simplex terminals up to 2 mm wire (wire rope terminal) 1x thimble approx. 23.5 meter antenna wire 1mm² black 1x capacitor 100pF 2kV DC 1x PL259 panel jack 1x extension coil 34uH ready wound and measured 1x shrink tube black 25.4-12.7mm 1x various screws, washers and nuts made of stainless steel 1x stainless steel ring 3x Fast-On ring contactType: MultibandLength: approx. 12 meters Connection: PL Max. Power: 100Watt PEP Phone Weight: approx. 550g Balun 1:49 Informationen gemäß Art. 19 GPSR Adresse des Herstellers:  Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.net Adresse der verantwortlichen Person: Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.net

Multi Isolator Maxi 120x16x16mm Der Multi Isolator Maxi aus Polycarbonat, ist stark, leicht, witterungs- und UV-beständig. Der Multi Isolator Maxi ist multifunktional einsetzbar, zum Beispiel als Zugentlastung für Dipole und EndFed Antennen. Abmessungen; 120x16x16mm Material: Wetter und UV-beständigiges Polycarbonat Isolator, Endfed, Fritzel, Dipol, Antennen, Hamradio, Amateurfunk , FR1901, fritzel isolator

End Fed multiband antenna DIY kit for 10-15-20-40-80m 300Watt PEP SSBNew extended kit! This kit contains all the necessary components to build an EndFed 1:49 multiband antenna for the bands 10-15-20-40-80 meters up to 300 Watt PEP Phone. We have added a connection for the counterweight and the useful stainless steel ring etc. to the kit. This End Fed kit is supplied with the antenna wire of your choice: Standard antenna wire: This antenna wire consists of 1.0 mm2 fine stranded copper conductor with black PVC insulation. The total diameter is approx. 2 mm. Ideal for experiments or vacation antennas. As the core is only made of copper, this stranded wire will become slightly longer and therefore thinner over time. The tensile strength of this stranded antenna wire is limited. Copper/Kevlar stranded antenna wire This stranded antenna wire is specially manufactured for antennas. The stranded wire consists of a Kevlar core with approx. 1.1 mm2 tinned and fine-stranded copper conductors. 1x 0.4 mm Kevlar and 24x 0.25 mm copper. The sheathing is made of black UV-resistant PE. The total diameter is approx. 2.5 mm. The tensile strength is approx. 50 kg. You receive a strong, flexible and relatively light antenna strand. The kit contains the following components: 1x toroidal core FT-240-431x enameled copper wire GR2 for winding the toroidal core (1mm) approx. 1.50 meters1x polycarbonate housing with transparent cover 100x100x60 mm (IP67)1x mini insulator 65 * 15mm2x simplex terminals up to 2 mm wire (wire rope terminal) 1x thimble approx. 23.5 meter antenna wire 1mm² black 1x capacitor 100pF 2kV DC 1x PL259 panel jack 1x extension coil 110uH ready wound and measured 1x shrink tube black 25.4-12.7mm 1x various screws, washers and nuts made of stainless steel 1x stainless steel ring 3x Fast-On ring contactType: MultibandLength: approx. 23 meters Connection: PL Max. Power: 300Watt PEP Phone Weight: approx. 600g Balun 1:49Informationen gemäß Art. 19 GPSR Adresse des Herstellers: Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.netAdresse der verantwortlichen Person: Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.net

End Fed multiband antenna DIY kit for 10-20-40m 300Watt PEP SSBNew extended kit! This kit contains all the necessary components to build an EndFed 1:49 multiband antenna for the bands 10-20-40meters up to 300 Watt PEP Phone. We have added a connection for the counterweight and the useful stainless steel ring etc. to the kit. This End Fed kit is supplied with the antenna wire of your choice: Standard antenna wire: This antenna wire consists of 1.0 mm2 fine stranded copper conductor with black PVC insulation. The total diameter is approx. 2 mm. Ideal for experiments or vacation antennas. As the core is only made of copper, this stranded wire will become slightly longer and therefore thinner over time. The tensile strength of this stranded antenna wire is limited. Copper/Kevlar stranded antenna wire This stranded antenna wire is specially manufactured for antennas. The stranded wire consists of a Kevlar core with approx. 1.1 mm2 tinned and fine-stranded copper conductors. 1x 0.4 mm Kevlar and 24x 0.25 mm copper. The sheathing is made of black UV-resistant PE. The total diameter is approx. 2.5 mm. The tensile strength is approx. 50 kg. You receive a strong, flexible and relatively light antenna strand. The kit contains the following components: 1x toroidal core FT-240-431x enameled copper wire GR2 for winding the toroidal core (1mm) approx. 1.50 meters1x polycarbonate housing with transparent cover 100x100x60 mm (IP67)1x mini insulator 65 * 15mm2x simplex terminals up to 2 mm wire (wire rope terminal) 1x thimble approx. 23.5 meter antenna wire 1mm² black 1x capacitor 100pF 2kV DC 1x PL259 panel jack 1x extension coil 34uH ready wound and measured 1x shrink tube black 25.4-12.7mm 1x various screws, washers and nuts made of stainless steel 1x stainless steel ring 3x Fast-On ring contactType: MultibandLength: approx. 12 meters Connection: PL Max. Power: 300Watt PEP Phone Weight: approx. 600g Balun 1:49 Informationen gemäß Art. 19 GPSR Adresse des Herstellers:  Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.net Adresse der verantwortlichen Person: Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.net

You don't have time to build an Endfed Multiband Antenna? No problem. We offer you a ready assembled End Fed Multiband for the bands 10-12-15-17-20-(30*)-40-80-160 meters up to 300 Watts PEP Phone. The antenna is tuned to band center. You only have to tune the antenna (as usual) minimally to the desired band section. This End Fed Multiband Antenna includes the following parts in addition to the standard components:Mounting plate, ring, thimble, ground connection, deluxe extension coil and a pressure equalization valve. This End Fed Multiband Antenna comes with: Copper/Kevlar antenna litz wire This antenna litz wire is manufactured specifically for antennas. The litz consists of a Kevlar core with approx. 1.1 mm2 tinned and fine stranded copper conductors. 1x 0.4 mm Kevlar and 24x 0.25 mm copper. The jacket is made of black UV-resistant PE. The total diameter is approx. 2.5 mm. The tensile strength is approx. 50 kg. You will receive a strong, flexible and relatively light antenna litz wire. Type: Multiband 1:64 Length: approx. 46 meters Connection: PL Max. Power: 300/600Watts PEP Phone Weight: ca 750g Info The measurements for this antenna were made on two 12m spider beam masts, 10 meters above the ground, in an open field, without any buildings. Informationen gemäß Art. 19 GPSR Adresse des Herstellers:  Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.net Adresse der verantwortlichen Person: Bonito - Gerichtsweg 3 - 29320 Hermmansburg - anfragen@bonito.net- www.bonito.net

Enclosure for Endfed Antennas Polycarbonate Now with transparent lid! Single enclosure of our EndFed antenna kits, with transparent lid, as a spare part or just for experimenting. The enclosre is made of polycarbonate, as in the kit. Polycarbonate housings are more weather-resistant and UV-resistant than ABS housings. Dimensions: 100 x 100 x 55mmColour: light greyMaterial: polycarbonateProtection class: IP 65Screws and gasket included
