BNC- BNC connector

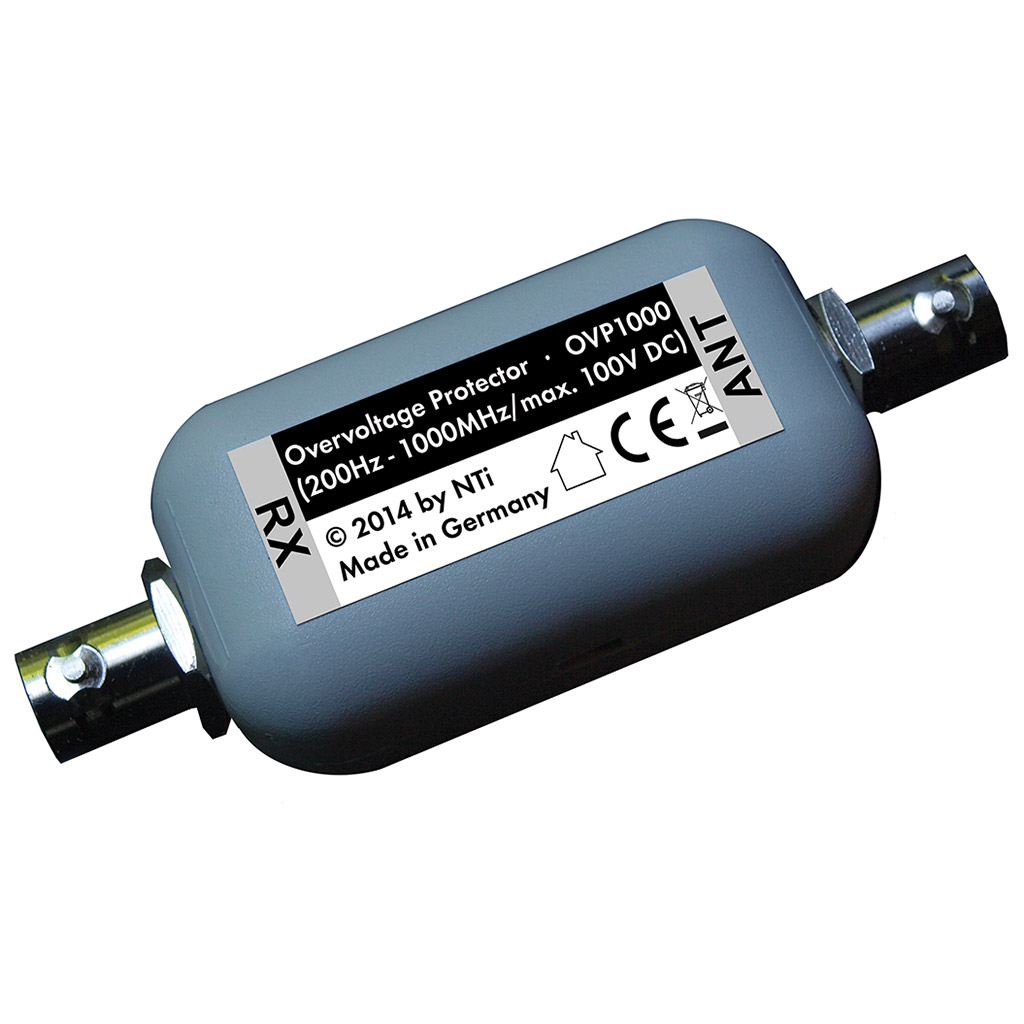

Over Voltage Protector OVP1000 Small part, big impact!Triple protection against overvoltages on the antenna line: To protect your receiver we offer the OVP1000 a new surge (Over Voltage Protector). Built-in coaxial lines, so be high current pulses as generated by lightning strikes in the immediate vicinity derived. These protect the OVP 1000 on three counts against overvoltages on the antenna line: Antenna side: A gas discharge tube with 60V ignition voltage, max. Pulse discharge current 1 kA (8 / 20us) On the receiver side. An ultrafast diode ESD (30KV max pulse power 350W (8 / 20us) Input and output are also for DC voltages up to max. Blocked 100V Without replaceable cartridge, the system is completely replaced. Not waterproof. Extremely broadband deployment Frequency range: 200Hz - 1GHz (type 1 dB insertion loss.)RCA sockets: BNC Made in Germany Overvoltage protection OVP1000 in practical use I inserted the 1000 inline while listening to Old Time Radio on 6770 AM, on my beverage. Not only did it decrease clipping without attenuator inline, it eliminates the DC clips with attenuator engaged!!! I can say from experience, the OVP1000 is reasonably priced, protection device that offers no noticeable insertion loss of signal & obviously drops the induced static… Read the Article in the Bonito Newsroom    Please read carefully and Disclaimer:The OVP 1000 is no protection of the antenna line against direct lightning strike, since lightning always seeking kürzsten way to Earth, which does not necessarily take place via the coaxial cable. Therefore, the protection function is limited to overvoltages and potential differences between Koaxmasse (shield and inner conductor). Therefore, a liability for connected devices is generally excluded! When not in use, absence, broadcasting or lightning storms in the receiver should be disconnected to prevent damage from the antenna line! Made in Germany

HP0020 High Pass Filter The elliptically-formed high pass filter HP0020 suppresses all frequencies below 2 MHz.  Strong or near-by transmitters in the long- or medium wave range can cause interferences and intermodulation in the shortwave range, which can effectively be suppressed with this filter.  The HP0020 filter is very steep, so that signals in the upper medium wave range are already suppressed effectively. For the greatest possible effectiveness, the low pass filter  should be inserted directly before the receiver input.  Attenuation values (typ.):<0.50 MHz:-55dB1.0MHz: -45dB1.6 MHz:-35dB2.0MHz: -3dB>2.5 MHz: -1dB Input and output are DC-blocked (max. 50V DC) Dimensons: 88mmx31mmx25mm (3,46 x 1,22 x 0,98 inch) Attention: Only suitable for reception, high HF (>10dbm) will cause permanent damage! Because the filter is DC-blocked, it has to be inserted between the receiver input and the power inserter. Successfully tested with: Elad FDM-S1 and FDM-S2, FiFi-SDR1.0 and 2.0, PM-SDR, Winradio Excalibur, RFSpace SDR-IQ

Galvanic Antenna Isolator GI1000 The GI1000 suppresses noise reaching the ground connections on the receiver. The GI1000 covers a wide-band range of 50 kHz - 1000 MHz (typ. 1db insertion loss). The unit can be used in many receiving applications, It will also work with frequencies up to 1,25 GHz but the insertion loss may increase by up to 3db. The unit also has integrated double over-voltage protection and input and output are blocked for DC voltage. The galvanic isolator GI 1000 separates the path of the direct current between the outer shield of the coax cable and the shielding of the antenna feeding line in order to suppress interference caused by potential differences. This is achieved by using a small toroidal transformer. The inner conductor of the coax cable is insulated with capacitors providing coarse and fine voltage surge protection. Specifications: Excellent protection against sheath waves and voltage surges.Double voltage surge protection. On the antenna side Gas Discharge tube with an ignition voltage of 90v. On the receiver side you will find an ESD-diode (30KV; max.pulse power 350W (8/20μs) Input and output has been blocked for direct currents of max. 50V. The GI 1000 is very useful for owners of a PERSEUS SDR who still own the original switching power supply. This little troublemaker has made life hard for many a PERSEUS owner. Caution: Only suitable for reception purposes, high RF performance (> + 10dBm) cause permanent damage!

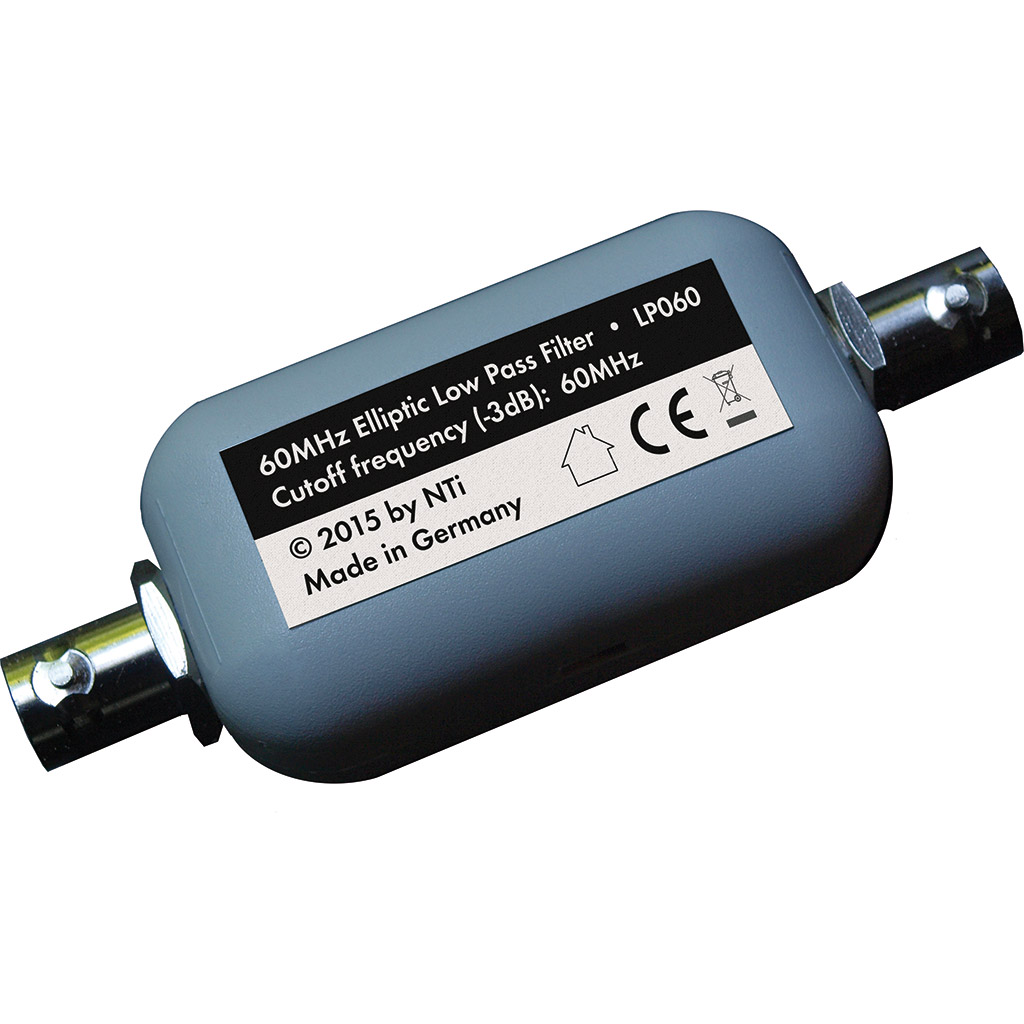

LP060 Low Pass Filter The elliptically-formed low pass filter LP060 from NTi suppresses all frequencies above 60 MHz. Highly effective antennas combined with near-by strong FM stations often overburden the input of the radio and cause interference and phantom signals. The LP060 was developed aiming at the highest possible suppression in the 88MHz - 108 MHz FM band, whereas as the 6m amateur radio band at 50MHz is still totally within the pass band. For the greatest possible effectiveness, the low pass filter  should be inserted directly before the receiver input.  Attenuation values (typ.):52MHz: -1dB60MHz: -3dB80 MHz: -55dB88-110 MHz: -90dB110-150MHz: -75dB150-200MHz: -70dB200-400MHz: -65 dB Dimension: 88mm x 31mm x 25mm (3,46 x 1,22 x 0,98 inch) Input and output are DC-blocked (max. 50V DC) Attention: Only suitable for reception, high HF (>10dbm) will cause permanent damage! Successfully tested with: Elad FDM-S1 and FDM-S2, FiFi-SDR1.0 and 2.0, PM-SDR, Winradio Excalibur, RFSpace SDR-IQ Made in Germany
