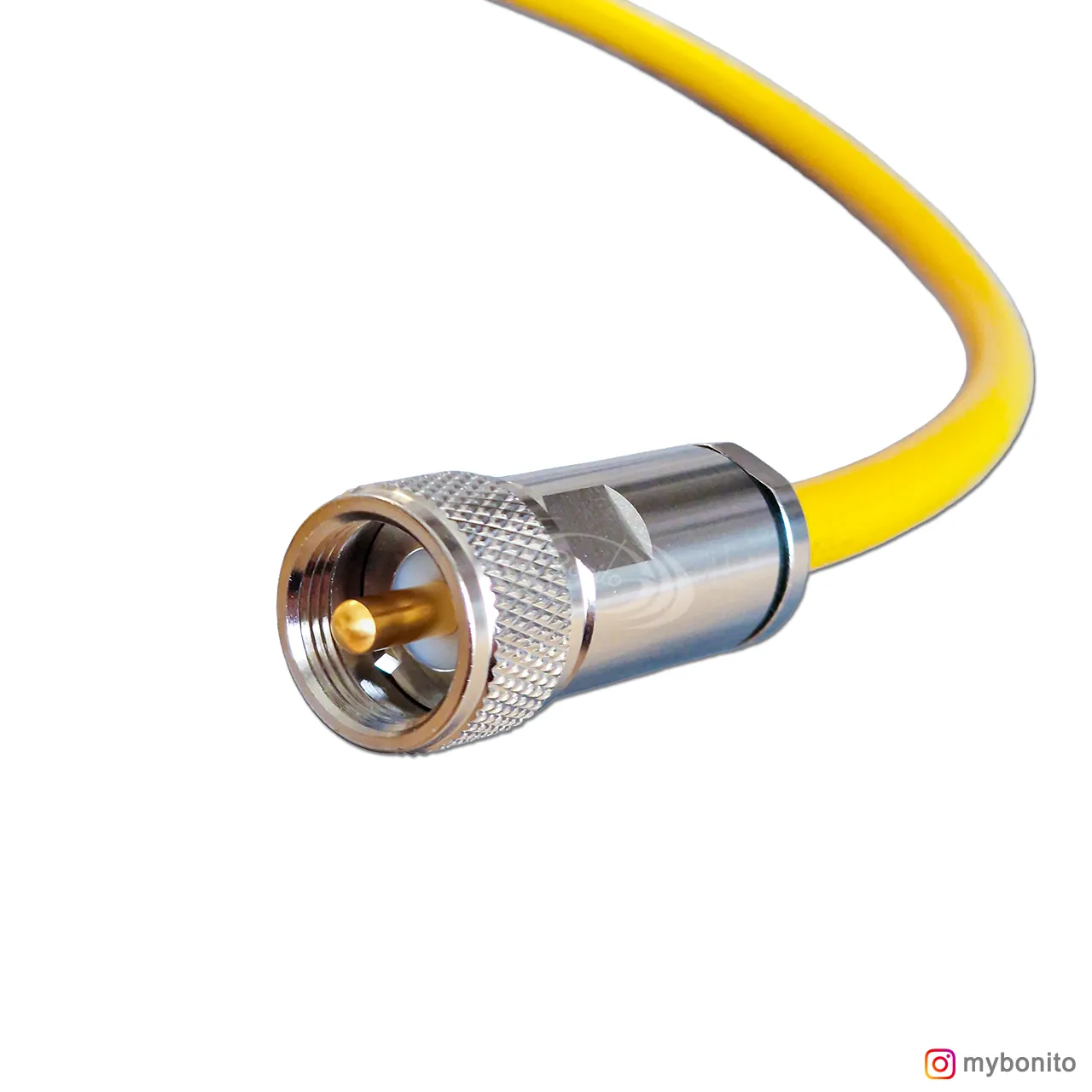

PL-connector PL7 for Ultraflex 7

M&P ULTRAFLEX 7 /.287" [7,3 mm/0,287 inches Cable] WRTC 2018 OFFICIAL CABLE! THE WORLD RADIO TEAM CHAMPIONSHIP IN GERMANY! http://www.wrtc2018.de/index.php/en/presse-2/pressemitteilungen-2/158-messi-paoloni-to-become-gold-sponsor-of-the-wrtc-2018 EXTRAORDINARY flexibility:  perfect matching with rotator operated antennas, obtained by means of a sophisticated full copper stranded inner conductor (19 wires instead of 7).New improved dielectric: outstanding attenuations up to 8 Ghz, even better than some solid core cables of the competition. Screening efficiency:  >105 dB (SA) and improved sturdiness reached by adding 24 more wires to the braid, for a total of 144 wires, (83% coverage+ 100% foil). This leads to a dramatic reduction of the background noise. Moreover the braiders used are 24 spools, instead of 16 spools, giving 50% MORE CROSSOVERS.Lightweight:  6,9 Kg/100 m instead of 13,8 Kg of our M&P-RG213/U, for a reduced stress of the “hanging and swinging" stretch of the cable in rotor operated antennas.Excellent Power Handling!The external PVC jacket is in black UV resistant PVC. This cable delivers exceptional mechanical features and electrical properties. Notwithstanding its small dimension (7,3 mm) its performances are so good to outperform RG 213 U (10,3 mm) and put into shade the competitor cables of the same diameter. M&P-ULTRAFLEX 7 is without any doubt one of our BEST SELLERS around the world!

Special scissors for cables specifically designed by Messi & Paoloni for ensuring a great accuracy in the cutting of each cable layers.  This cable scissor cuts cables 12mm like: RG58, H 155, Hyperflex 5, Ultraflex 7, Hyperflex 10, RG213 and many more. We use these cable scissors ourselves and cut all cables with it. It lays very good in the hand and you just have in the best control and feel the different layers of the coaxial cable and can cut exactly the desired part of the cable. This cable scissor from Messi and Paoloni is our recommendation to our customers

SIVA RF 257 UF-PVC low loss coaxial cable 7.3 mm The RF257UF is a very good alternative in the 7.3mm coaxial cable class and suitable for the frequency range up to 6 GHz. This double shielded coaxial cable, has low attenuation and good flexibility. The inner conductor is made of 7x0,65mm wires. The braid, encloses the plastic coated copper foil, with a coverage of 72%. Technical Data Inner conductor: Copper red Wire Size: 7 x 0.65 mm Dielectric: polyethylene foam - Ø 5 mm + 0.10mm Screen: copper foil / polyester - h 18 mm - cover: 100% Braid: Red copper - 120 mm x 00:12 Coverage: 72% Sheath: PVC2 Ø 7.3 mm + 0.10mm Impedance: 50 Ohm + 3 Velocity : 80% Capacity: 80 pF / m Shielding efficiency: > 80 dB (100-900 MHz) > 70 dB (900-2000 MHz) > 60 dB (2000-3000 MHz) Total weight: 7.26 Kg 100 meters

POTA-FLEX 7 Koaxkabel Das neue POTA-FLEX 7 Koaxkabel wurde von Messi&Paoloni speziell für Outdoor-Anwendungen wie POTA (Parks on the Air), SOTA, IOTA etc. entwickelt, bei denen extrem robuste und gut sichtbare Koaxkabel gefragt sind. Die gelbe und reflektirende Ummantelung des Koaxkabels ist gut sichtbar und bietet somit auch an belebten Plätzen wie Parks tc. einen optischen Schutz und reduziert die Stolpergefahr und unbeabsichtigtem "Hängenbleiben". Das leichte und flexible Pota-Flex 7 Koaxialkabel von Messi e Paoloni hat einen Außendurchmesser von 7,65 mm, den Innenleiter bilden 19 einzelne Kupferdrähte. Die Abschirmung besteht aus 3 Schichten: 2 x Geflecht aus Kupferdraht mit jeweils 144 Drähten, darunter Kupferfolie mit einer PE-Schicht, die das Dielektrikum umgibt. Dadurch wird nicht nur eine ideale HF-Abschirmung erreicht, sondern das Kabel auch vor mechanischer Beschädigung geschützt.. Das Dielektrikum ist geschäumt, dadurch wird eine im Verhältnis zum Durchmesser sehr geringe Dämpfung erreicht. Technische Daten Pota-Flex 7 Impedanz @200Mhz: 50 Ohm ± 3 Minimaler Biegeradius: erfolgreich getestet bis zu 100 Biegungen, unter Verwendung des „PotaSpeed“ mit Innenkern Ø126mm Temperaturbereich: -40°C bis +60°C (-40°F bis +140°F) Kapazität: 75 pF/m ± 2 (22,9 pF/ft ± 2) Verkürzungsfaktor: 83% Abschirmungswirkungsgrad (SA) 100-2000 MHz >105 dB Innenleiterwiderstand: 7,3 Ohm/Km Außenleiterwiderstand: 12 Ohm/Km Spannungsprüfung (Funkentest): 4 kV Nettogewicht 100m (100ft): 5,4 Kg (3,63 lbs) Maximale Spitzenleistung: 8000 WATT Strukturelle Rückflussdämpfung: 0,3-600 MHz 600-1200 MHz 1200-2000 MHz >28 dB >22 dB >18 dB Informationen gemäß Art. 19 GPSRHersteller: Messi&PaoloniHerstellername: Messi & Paoloni SrlHandelsname: Messi & PaoloniAdresse: Via Giovanni Conti 1 - 60131 ANCONA, ItalyE-Mail: web@messi.itWebseite: https://messi.it/ Verantwortliche Person:Name: Messi & Paoloni SrlAdresse: Via Giovanni Conti 1 - 60131 ANCONA, ItalyE-Mail: web@messi.itWebseite: https://messi.it/

Messi & Paoloni Ultraflex 7 PE low loss coax cable Many OMs have been waiting for this! The new Ultraflex 7 PE from Messi & Paoloni is a double-shielded low-loss coaxial cable with a diameter of 7.3 mm. Thanks to the special PE (polyethylene) sheathing, UV-resistant, waterproof and designed for direct burial. ULTRAFLEX 7 is without any doubt one of our BEST SELLERS around the world! It is a coaxial cable for the frequency range from DC to 8 GHz. This new product can be used in transmitting and receiving systems in wireless communication technology as well as in the entire field of commercial high-frequency technology and electronics. Screening efficiency  >105 dB (SA) and improved sturdiness reached by adding 24 more wires to the braid, for a total of 144 wires, (83% coverage+ 100% foil). This leads to a dramatic reduction of the background noise. Moreover the braiders used are 24 spools, instead of 16 spools, giving 50% MORE CROSSOVERS. Excellent Power Handling! The external PVC jacket is in black UV resistant PVC. This cable delivers exceptional mechanical features and electrical properties. Notwithstanding its small dimension (7,3 mm) its performances are so good to outperform RG 213 U (10,3 mm) and put into shade the competitor cables of the same diameter. Attenuation @ 20°C FREQUENCY dB/100m dB/100ft 1,8 MHz 0,95 0,29 3,5 MHz 1,28 0,39 7,0 MHz 1,6 0,49 10 MHz 1,9 0,58 14 MHz 2,2 0,67 21 MHz 2,6 0,79 28 MHz 3,0 0,91 50 MHz 4,0 1,22 100 MHz 5,8 1,77 144 MHz 6,9 2,10 200 MHz 8,2 2,50 400 MHz 11,8 3,60 430 MHz 12,3 3,75 800 MHz 17,1 5,21 1000 MHz 19,3 5,88

This rubber sleeve protects plug connections from corrosion and prevents water from entering the installed plug such as BNC, PL and N plugs. For coaxial cables with a diameter of 4.5 to 12 mm. Total length not shortened approx. 14.5 cm. Do you want to protect your BNC, PL or N connector from the weather outside on the antenna? This can be done quickly and easily with this rubber grommet: simply pull the rubber grommet over the cable before installing the connector, mount the connector and then pull the grommets back up. Now cut off the rubber grommet to match. Finished! Ideal if you frequently change the antenna or for temporary setup at DX camps, field days etc. You can order this rubber sleeve with the ready-made cables. The cuff is then fitted to match immediately.

SIVA RF 257 UF-PVC low loss coaxial cable 7.3 mm The RF257UF is a very good alternative in the 7.3mm coaxial cable class and suitable for the frequency range up to 6 GHz. This double shielded coaxial cable, has low attenuation and good flexibility. The inner conductor is made of 7x0,65mm wires. The braid, encloses the plastic coated copper foil, with a coverage of 72%. Technical Data Inner conductor: Copper red Wire Size: 7 x 0.65 mm Dielectric: polyethylene foam - Ø 5 mm + 0.10mm Screen: copper foil / polyester - h 18 mm - cover: 100% Braid: Red copper - 120 mm x 00:12 Coverage: 72% Sheath: PVC2 Ø 7.3 mm + 0.10mm Impedance: 50 Ohm + 3 Velocity : 80% Capacity: 80 pF / m Shielding efficiency: > 80 dB (100-900 MHz) > 70 dB (900-2000 MHz) > 60 dB (2000-3000 MHz) Total weight: 7.26 Kg 100 meters
