MegActiv MA305FT active antenna

Product information "MegActiv MA305FT active antenna"

MegActiv MA305FT Wide Band Active Antenna

Wide frequency range 9kHz – 300MHz
Small dimensions
Dual Power Supply: 5,5V – 15V
Selectable FM band stop filter with low pass function
Ideal for traveling, at home or DX-Camps
IP3:>typ. +30dBm / IP2:>typ. +50dBm
Enlarged and flexible 200mm radiating element

The new MegActiv MA305FT is an evolution of the popular MegActiv MA305. In addition to small improvements in electronics, the new MegActiv MA305FT has been equipped with a switchable FM band-stop filter. Thus, disturbing radiation from the FM band between 88 and 108 MHz can be easily minimized

The new MegActiv MA305FT close the gap between the Boni-Whip and the GigActiv GA3005 E-Field Antennas. This low noise active antenna, which is produced according to the highest standards, covers the frequency range between 9kHz and 300MHz. With a radiating element of only 22 cm / 8,66 inch it can be erected inconspicuously. It can be powered with 5-15 V DC (max.10mA) and alternatively with the supplied Power unit CPI 1500DP via USB.

Flexible FM-band stop filter

Based on the well proven Megactiv platform, an additional low pass filter and a FM-band stop filter were integrated which can be activated or deactivated with a jumper. In case of FM-interferences, the FM bandstop filter can be activated with a jumper and so FM signals between 88 MHz and 108 MHz will be attenuated by 25 – 40 dB.

Flexible power supply

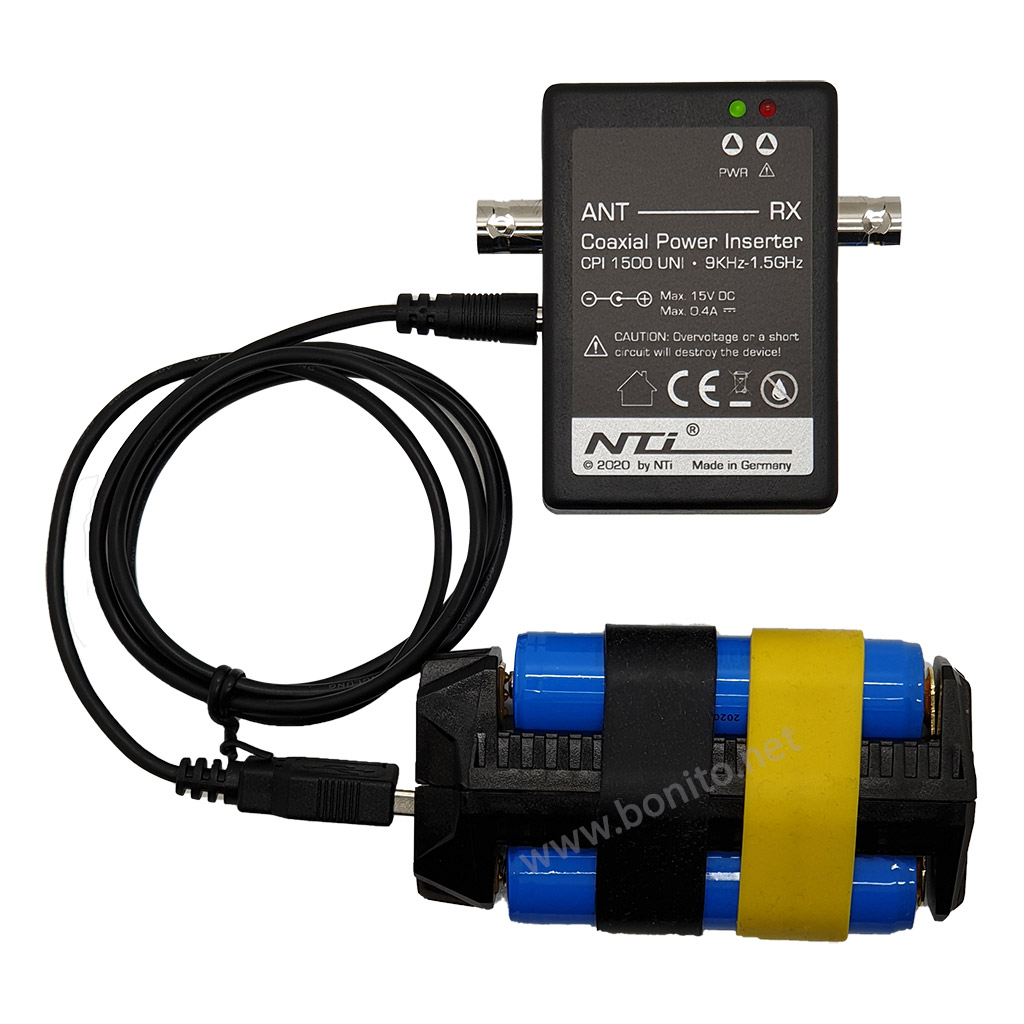

The MegActiv MA305FT can be operated by two different kinds of power sources. It can be powered either by a conventional plug power supply (5,5 / 2,1mm round plug) or via USB with a optional Cable. Powering via USB has the advantage that no external power supply is needed and that the antenna can be operated autonomously and noise-free with a separate USB PowerBank. The supply voltage range is 5 - 15V DC (10mA max) and thus the antenna is also well suited for portable use.

You want to test the MegActiv MA305FT live on air?

If you would like to test the MegActiv MA305FT active antenna live, you can now conveniently do this over the Internet with a KIWI SDR. Just click on this Link and you can browse the whole band from 10kHz to 30MHz. The linked KIWI-SDR with a MegActiv MA305FT is located in Bonn (DL0DTM Clubstation Deutsche Telekom) and can handle up to 4 users at a time.

Features

Integrated double surge protection of the active components: Coarse protection by gas discharge tubes with 60V firing voltage with max. pulse leakage current 1kA (8/20µs) with additional integrated ESD fine protection of max. 2kV.
Standard delivery with Power unit CPI1500DP (external power supply and USB-operation possible)
IP3:>typ. +30dBm
IP2:>typ. +50dBm

Integrated double overvoltage protection of the active antenna part

Integrated double surge protection of the active components: Coarse protection by gas discharge tubes with 60V firing voltage with max. pulse leakage current 1kA (8/20µs) with additional integrated ESD fine protection of max. 2kV.

Fernando from Fenu-Radio.ch did the first comparison Test in Mai 2015 and released this test on his Page in German: www.fenu-radio.ch.

Quote from the review by FenuRadio: (translated)

"The NTi MegActiv is a small receiving antenna with excellent reception performance. The construction proved to be unproblematic, similar to the Boni-Whip. From VLF up on the FM band, the MegActiv receives very well despite their small size. When properly setup it provides a nearly unbeatable signal / noise ratio!"

Whats in the box?

MegActiv MA305FT
Whip / Radiator

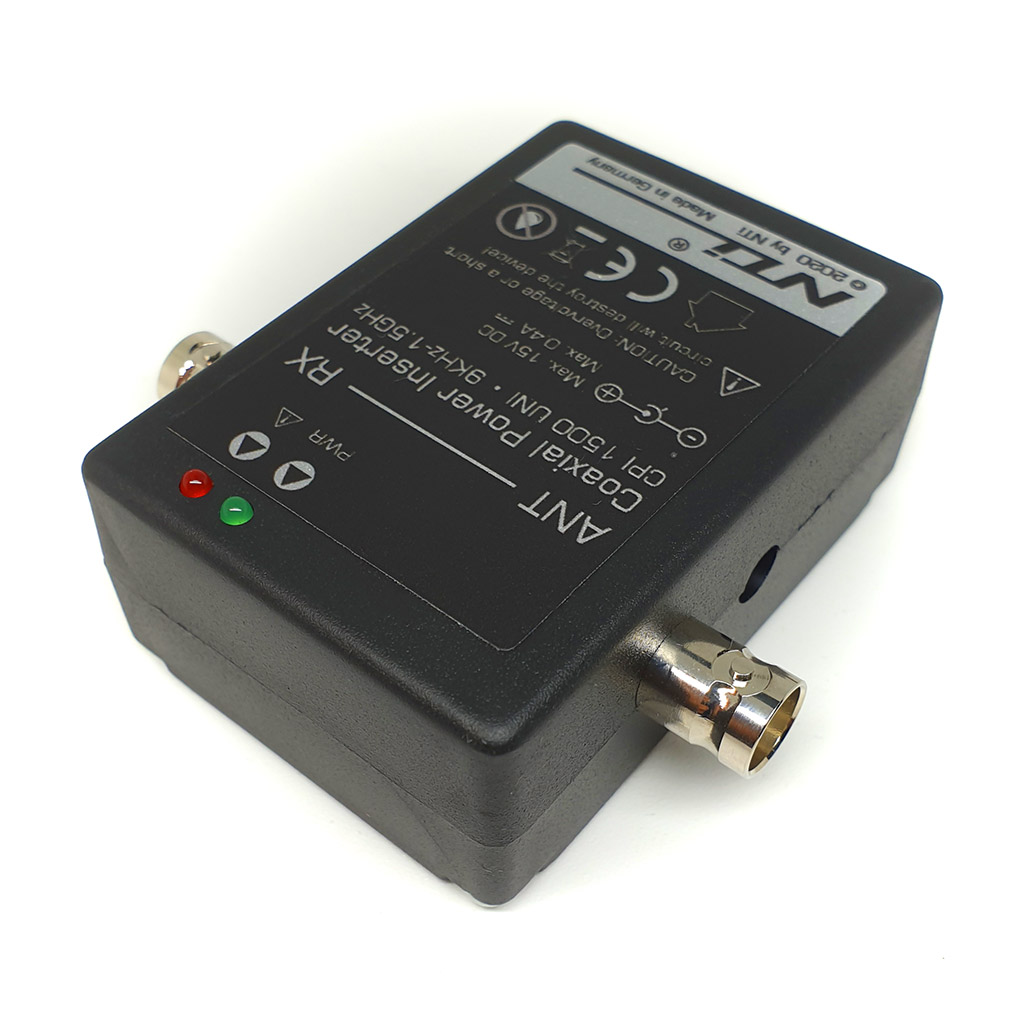

Junction box CPI1500DP

Made in Germany

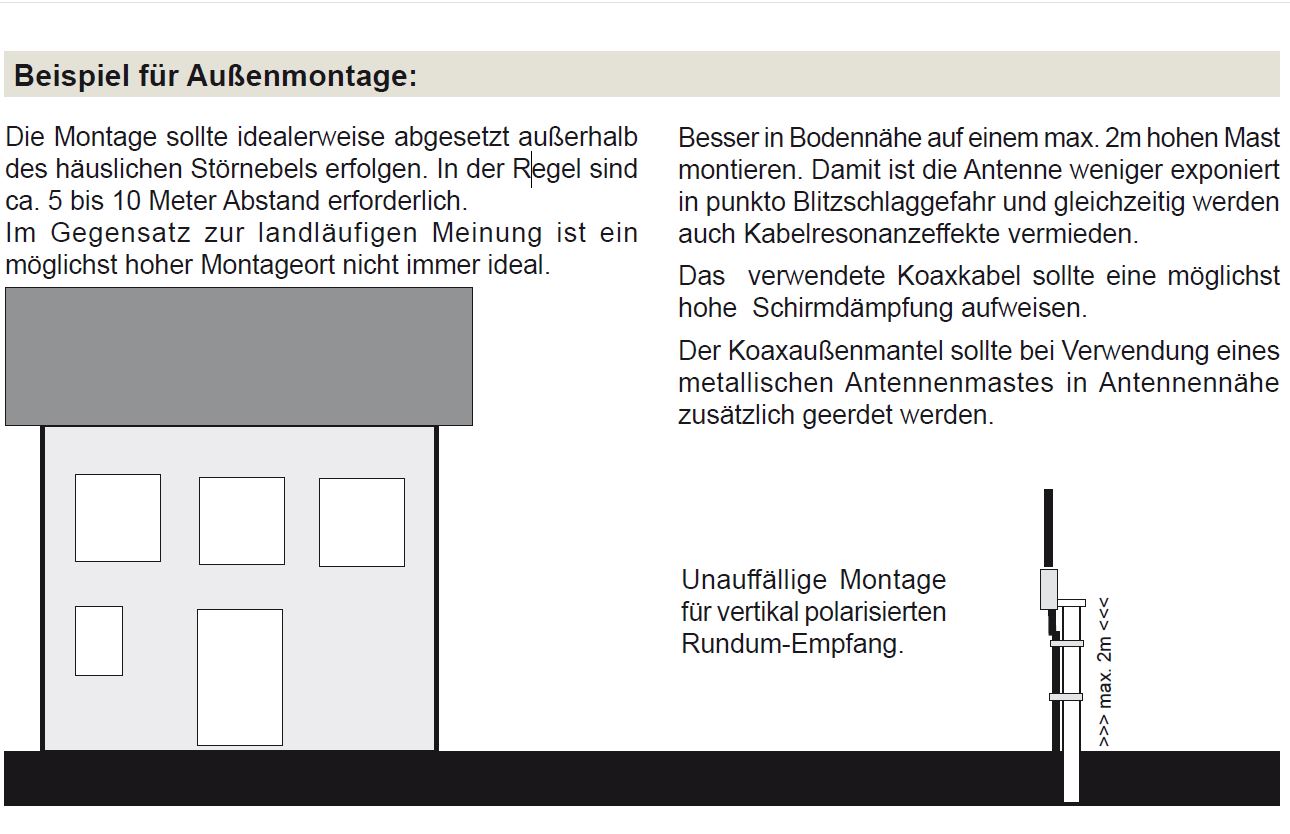

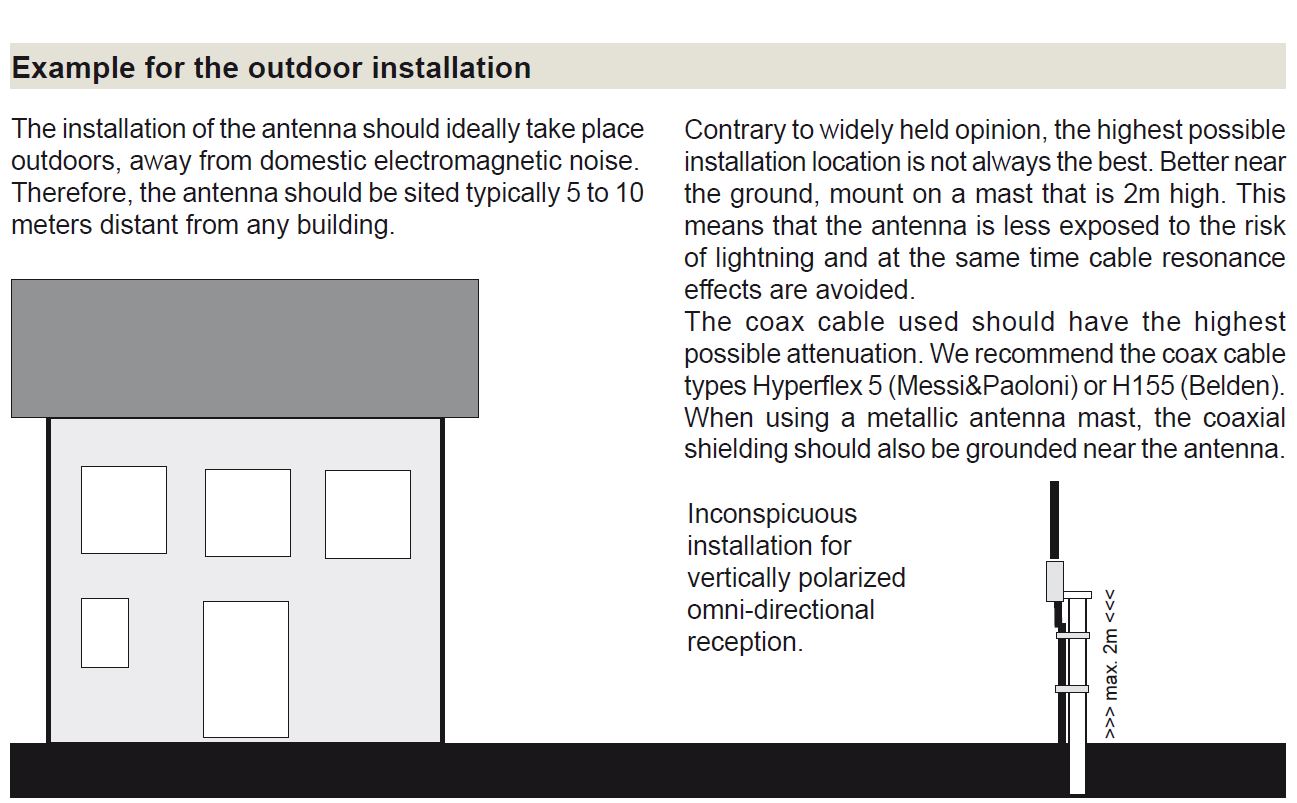

Please note!

The offered coax cables are custom-made and therefore not returnable / refundable.

Anschlussbuchse:	BNC
Anschluss der Versorgungsspannung:	5,5 / 2,1mm barrel connector
Einsatzbereich:	Outdoor
Einspeiseweiche:	CPI1500UNI
IP2:	> +50 dBm
IP3:	> +30 dBm
Impedanz:	50 Ohms
Made in Germany:	Yes
Max. Frequenzbereich:	9kHz - 300MHz
Stromverbrauch:	Typ: 10 mA (max. 40 mA)
Stromversorgung:	5,5 - 12 Volt
Typ:	E-Field
UKW-Bandstop-Filter:	Yes, selectable
Verstärkung:	+3dB

Accessory Items

Antenna mast mounting bracket for Boni-Whip, MegActiv, GigActiv and Megaloop

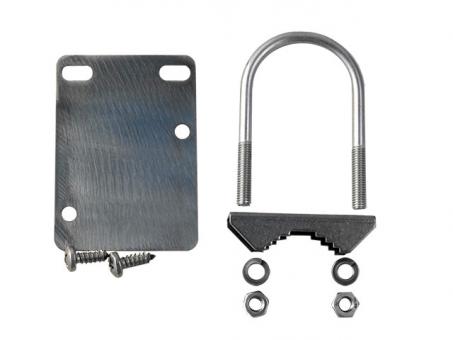

This V4A mounting bracket fits for the Boni-Whip, MegActiv, GigActiv and the MegaLoop.

From €17.99*

Details

Akkupack für den rauscharmen Betrieb unserer Antennen: MegaLoop, MegActiv und GigActiv.

PowerBank

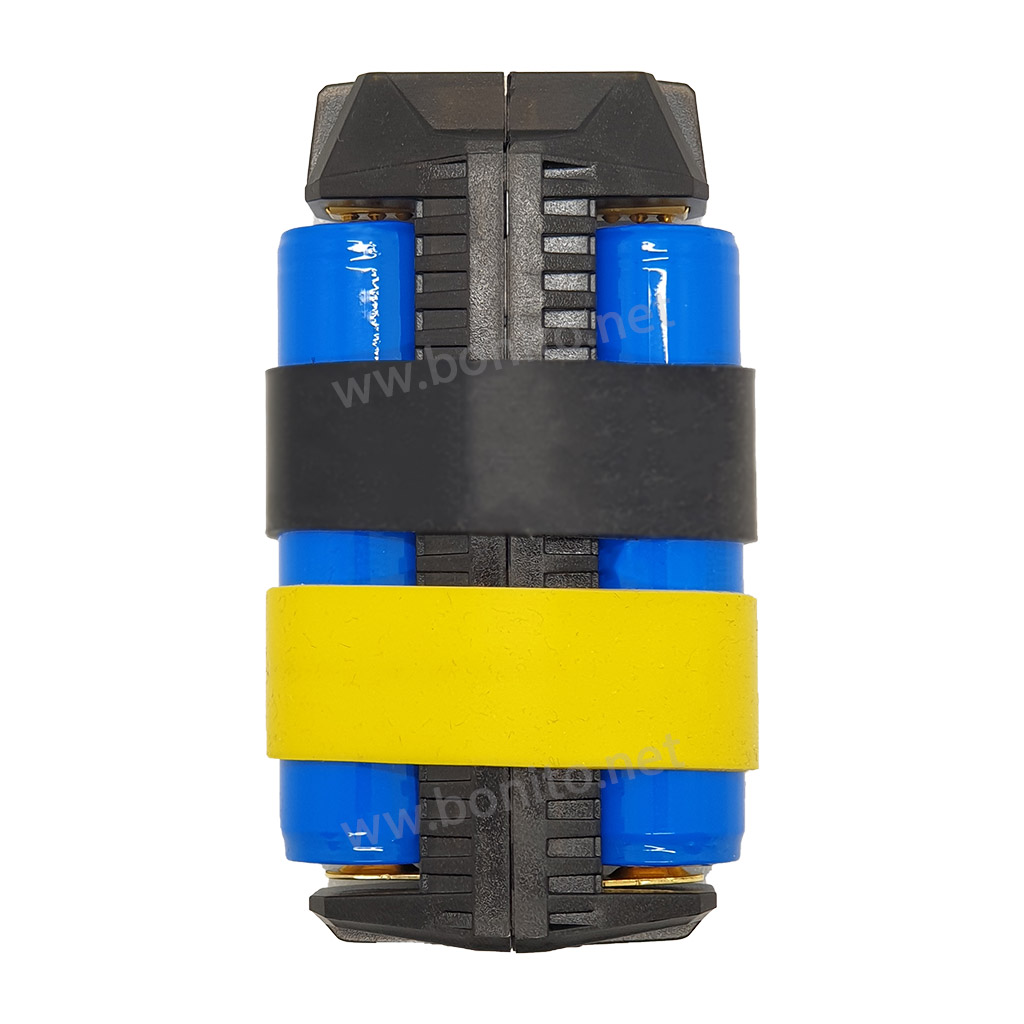

PowerBank Actually this PowerBank is intended for charging smartphones. But this model can also power our antennas: MegaLoop, MegActiv 305 and GigActiv 3005, autonomously and noise-free. Ideal for mobile use. 5V with 4000mAh, including USB 3.0 connection cable (approx. 10 cm long) Technical specifications Input voltage: DC 5 V, ≥ 500 mA (USB compatible) Output voltage: 4.2 V ± 1% (charging slot) / 5 V ± 5% (USB) Output current: 2 x 1A MAX (charging slot) / 2A MAX (USB) Dimensions: 94 mm × 44 mm × 25 mm Weight: 46.5 g (without connection cable) Scope of delivery: Powerbank with 2x18650 LI-ION batteries (2x 2000mAh), 2x retaining rubber, 1x USB 3.0 connection cable
